Using RADIUS to Authenticate Logins

In this post i'll detail how to set up a Windows IAS RADIUS server to authenticate user login on a router.

Windows IAS Server Setup

1. Create a Windows Security group with the users you want to allow access to the routers
2. Enable the user accounts to have Dial-in Access.
3. Install IAS on the server (from Add Remove programs).
4. Create a new cisco RADIUS Client, point it to the Router and supply a shared key. Set the Grant Remote Access.

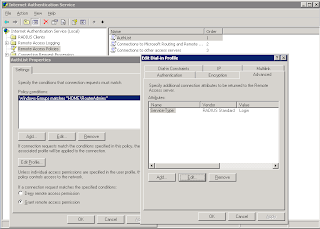

5. Create a new Remote Access Policy with the following settings:

• Windows Group (point this to the group you created)
• Edit the profile and set the autentication to PAP
• Under the advanced tab set the service type value to login & remove Framed-Protocol.

Thats really it. A detailed tutorial on setting up your IAS server can be found here.

Router Setup

Here I am going to configure my router to use AAA Authorization to authorise access by looking at the user credentials in Active Directory (AD). Remember, only AD users in the group I created above will be able to login with their windows credentials.

First I'll talk you through what I'm doing in the following commands.

I'm creating a local user on the router called syn. This is so I can still get into the router if my RADIUS server fails.

I enable AAA and I create a new entry in AAA to point to my RADIUS server (using the default ports) and give it a the key "cisco" to match what we set up on the RADIUS server.

I then enable my ethernet interface on the same LAN as the RADIUS server as the RADIUS source interface and create a AAA authentication login method list called AuthList. This rule will first look to authenticate by RADIUS and then locally if the RADIUS server fails. I then apply the method list to my VTY (Telnet/SSH) ports.

R1>en

Password:

R1#

R1#conf t

Enter configuration commands, one per line. End with CNTL/Z.

R1(config)#user syn password cisco

R1(config)#aaa new-model

R1(config)#radius-server host 10.0.1.230 auth-port 1645 acct-port 1646 key cisco

R1(config)#ip radius source-interface ethernet 1

R1(config)#aaa authentication login AuthList group radius local

R1(config)#line vty 0 4

R1(config-line)#login authentication AuthList

R1(config-line)#exit

R1(config)#exit

R1#

A detailed tutorial can be found here. Just remember to enable the user account for Dial-in access in the AD account properties.

After setting this up I also needed to configure RADIUS authentication on my Console port and Aux port using the following for each port:

R1(config)#line console 0

R1(config-line)#login authentication AuthList

R1(config-line)#exit

R1(config)#line aux 0

R1(config-line)#login authentication AuthList

R1(config-line)#exit

R1(config)#exit

R1#

Troubleshooting

Debugging on the router can be achieved with the following commands:

R1# terminal monitor

R1# debug aaa authentication

The command below will test a login from the router. You should be able to check your event logs and IAS logs on the RADIUS server to see this account authenticate.

R1# test aaa group radius syn SuperStrongPassword port 1645 new-code

And of course on the RADIUS server check the IAS logs (C:\windows\System32\Logfiles) and also the Event logs when troubleshooting. I hit a real issue after setting up which after a good google session turned up nothing, the event log told me the answer straight off (allow Dial-Up on the user account BTW).
